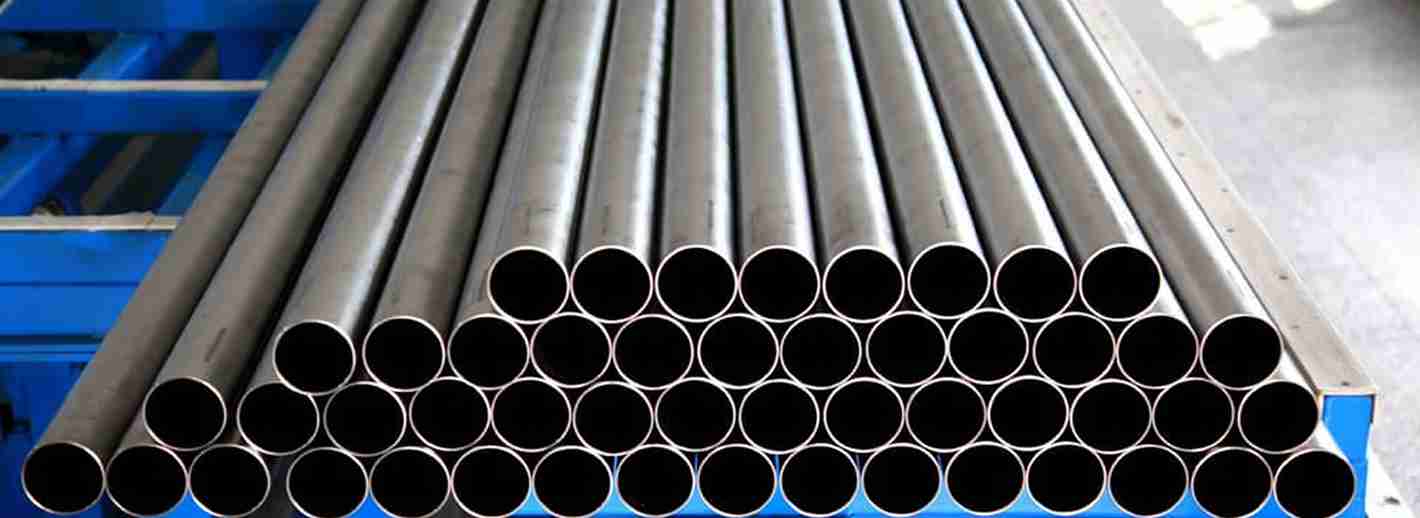

Nickel Alloy 20 Pipes and Tubes are popular in the chemical and petrochemical industries due to their exceptional properties. These alloys are composed of nickel, iron, chromium and copper, with varying levels of manganese, carbon and silicon. The combination of these metals gives Nickel Alloy 20 Pipes and Tubes their excellent corrosion resistance and high mechanical strength.
Nickel Alloy 20 Pipes Features:
Nickel Alloy 20 Pipes have a range of features that make them ideal for use in demanding industrial applications. Firstly, they have excellent corrosion resistance in harsh environments, including sulphuric and phosphoric acid. Additionally, they offer resistance to stress-corrosion cracking, general corrosion, pitting and crevice corrosion. Nickel Alloy 20 Pipes also have high mechanical strength and are tough enough to withstand high-pressure and temperature environments.
Table Content
Nickel Alloy 20 Tubes Corrosion Resistance:
Nickel Alloy 20 Tubes are known for their high level of resistance to corrosion. They offer exceptional resistance to sulphuric acid, phosphoric acid, hydrochloric acid, and other aggressive agents. The corrosion resistance is largely due to the alloy's chromium, molybdenum, and copper composition. Nickel Alloy 20 Tubes also offer excellent resistance to corrosion caused by chloride stress and intergranular attack.
Nickel Alloy 20 Pipes Chemical Composition:
The chemical composition of Nickel Alloy 20 Pipes includes nickel, iron, chromium, copper, and small amounts of molybdenum, carbon, and silicon. The addition of copper in Alloy 20 Pipes helps to improve the alloy's resistance to corrosion, while the presence of nickel and iron gives the pipes increased strength and durability. The carbon content of the alloy is kept low to prevent intergranular corrosion, which can be problematic in high-temperature environments.
Nickel Alloy 20 Tubes Machining
Nickel Alloy 20 Tubes can be machined using traditional techniques similar to those used in machining other high-strength alloys. The common methods in use include: turning, drilling, threading, and milling. The alloy requires a slow and steady approach during machining to prevent work hardening and the utilization of liquid cooling agents to prevent the generation of excess heat. A high degree of care and skill is required during the machining process to prevent material damage.
Rolling and Welding
The Cleaning and Heating Phase
Cold - Drawing Process
Finishing Process
| Specifications | ASTM B729, B464, B468/ ASME SB729, SB464, SB468 |
| Seamless Pipes & Tubes Size | 1 / 8" NB - 24" NB |
| ERW Pipes & Tubes Size | 1 / 8" NB - 36" NB |
| EFW Pipes & Tubes Size | 6" NB - 100" NB |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Schedule | SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / ERW / EFW / Welded |
| Form | Round Pipes/Tubes |
| Key markets and industries |
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| End | Plain End, Beveled End, Treaded |
-
Alloy 20 Seamless Pipes
-
Alloy 20Cb-3 Welded Pipes
-
Alloy 20 ERW Pipe
-
Incoloy alloy 20 EFW Pipe
-
Alloy 20 Seamless Tubes
-
Carpenter 20 Welded Tubes
- Incoloy alloy 20 Pipe Price List
- Alloy 20 EFW Pipes
- Incoloy alloy 20 Seamless Pipes
- ASTM B464 Alloy 20 Seamless Pipes
- Alloy 20 4 Inch Pipe
- Alloy 2.4668 Pipes
- ASME SB464 Alloy 20 Pipes
- Incoloy alloy 20 Seamless Pipes
- Incoloy alloy 20 Thick Wall Pipe
- Alloy 20Cb-3 Schedule 40 Pipe
- Alloy 20 ERW Pipe
- Alloy 20 Thin Wall Pipe
- Incoloy alloy 20 Welded Pipe
- Alloy 20 Schedule 10 Pipes
- UNS N08020 Pipes
- Alloy 20Cb-3 EFW Pipe
- Alloy 20 Large Diameter Pipe
- Incoloy alloy 20 Round Tube
- Alloy 20 Tubes
- ASTM B468 Incoloy alloy 20 Welded Tubes
- Alloy 20Cb-3 Tubes
- Alloy 20 Tubing Price
- Alloy 20Cb-3 Tubing
- Incoloy alloy 20 Thick Wall Tube
- Alloy 20 Round Tubes
- UNS N08020 Tubes
- ASTM B163 Alloy 20 Seamless Tubes
- 22mm Alloy 20 Tube
- Alloy 2.4375 Tubes
- Alloy 20 Seamless Tubing
- ASME SB468 Alloy 20 Tubing
- Alloy 20 Thin Wall Tube
- ASME SB468 Carpenter 20 Welded Tubing
- Incoloy alloy 20 ERW Tubes
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
|---|---|---|---|---|
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| Grade | Ni | C | Mn | P | S | Si | Cr | Nb | Mo | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 32 - 38 | 0.02 max | 1 - 2 | 0.02 max | 0.005 max | 0.7 max | 19 - 21 | 0.1 - 0.3 | 2 - 3 | 3 - 4 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
“ Check Bhansali Exports's offered Alloy 20 Pipes and Tubes Prices, Dimensions & Weight. Place an order or enquire about your requirements. We will glad to be service. ”
