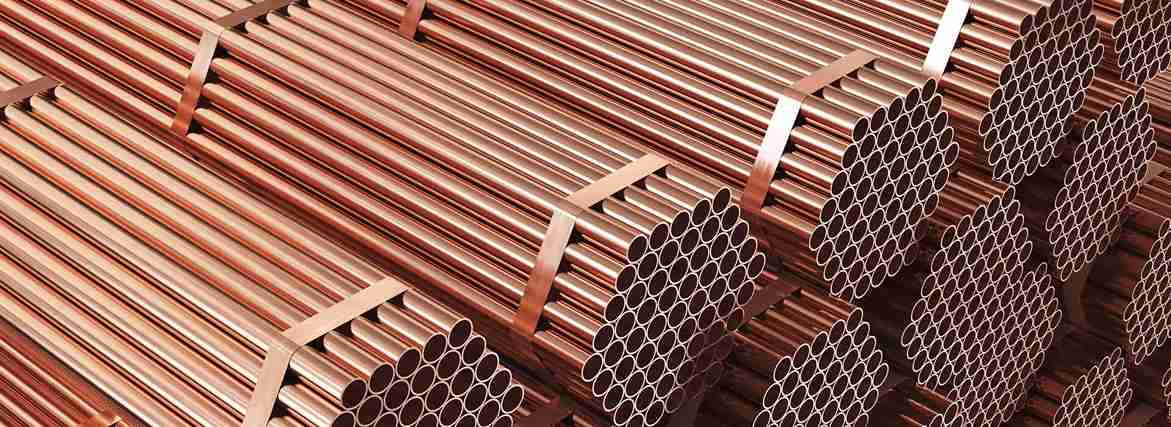

Cupro Nickel 70/30 Pipes and Tubes are highly corrosion-resistant and durable, making them an excellent choice for seawater and marine environments. These pipes and tubes combine copper and nickel in a 70:30 ratio, offering exceptional resistance to erosion, corrosion, and biofouling. They are widely used in various industries, including chemical, petrochemical, and shipbuilding.
Cupro Nickel 70/30 Pipes Features:
Cupro Nickel 70/30 Pipes are known for their excellent resistance to seawater corrosion, pitting, and erosion. They are highly resistant to biofouling and provide high thermal conductivity and excellent flexibility. These incredibly durable and strong pipes make them an ideal choice for use in harsh marine environments. Moreover, they have excellent fabrication properties and can be easily welded, brazed, or soldered. Cupro Nickel 70/30 Pipes are available in various sizes and shapes, including round, square, rectangular, and custom shapes, making them suitable for various applications.
Table Content
- Chemical Composition of Cupro Nickel 70 / 30 Tubes
- Mechanical Properties of Cu-Ni 70 / 30 Pipes & Tubes
- Cupro Nickel 70 / 30 Pipes Price, Dimension, Weight Details
- Countries & Cities Where We Export & Supply Copper Nickel 70 / 30 Pipes and Tubes
- Cupro Nickel 70 / 30 Pipes and Tubes Industrial Application
Cupro Nickel 70/30 Tubes Corrosion Resistance:
Cupro Nickel 70/30 Tubes are resistant to corrosion caused by saltwater, brackish water, and various types of chemicals. They are highly resistant to crevice and stress corrosion cracking and can withstand high temperatures and pressures. These tubes provide excellent thermal conductivity, low thermal expansion, and high resistance to biofouling. They are suitable for desalination plants, saltwater piping systems, heat exchangers, and condensers. Cupro Nickel 70/30 Tubes are available in various sizes and thicknesses to meet the specific requirements of different industries.
Cupro Nickel 70/30 Pipes Chemical Composition:
Cupro Nickel 70/30 Pipes and Tubes are made from a blend of copper and nickel in a 70:30 ratio, along with small amounts of iron and manganese. The chemical composition of these pipes and tubes also includes trace amounts of other elements such as zinc, tin, and lead. This blend of metals provides excellent corrosion resistance and high strength, making them ideal for use in harsh marine environments. The chemical composition makes these pipes and tubes highly resistant to erosion and corrosion and provides excellent flexibility, enabling them to form into various shapes and sizes.
Cupro Nickel 70/30 Tubes Physical & Mechanical Properties:
Cupro Nickel 70/30 Pipes and Tubes have excellent physical and mechanical properties. They exhibit high thermal conductivity, low thermal expansion, and high resistance to oxidation and biofouling. These pipes and tubes are highly ductile and easily formed into various shapes and sizes.
Rolling and Welding
The Cleaning and Heating Phase
Cold - Drawing Process
Finishing Process
| Specifications | ASTM B466, B467, B111 / ASME SB466, SB467, SB111 |
| Seamless Pipes & Tubes Size | 1 / 8" NB - 24" NB |
| ERW Pipes & Tubes Size | 1 / 8" NB - 36" NB |
| EFW Pipes & Tubes Size | 6" NB - 100" NB |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Schedule | SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / ERW / EFW / Welded |
| Form | Round Pipes/Tubes |
| Key markets and industries |
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| End | Plain End, Beveled End, Treaded |
-

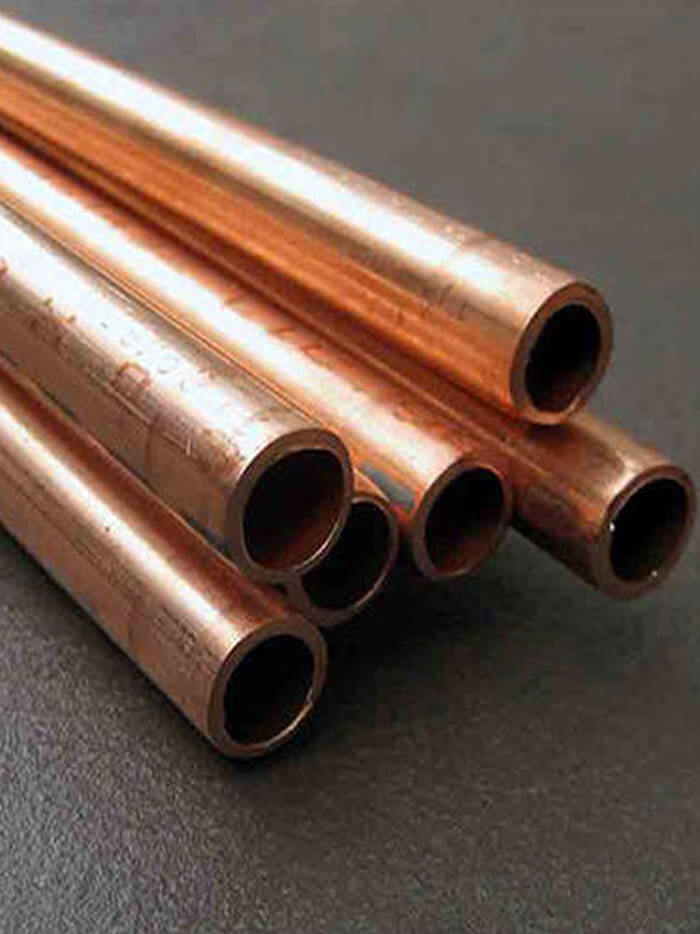

Cupro Nickel 70 / 30 Seamless Pipes
-

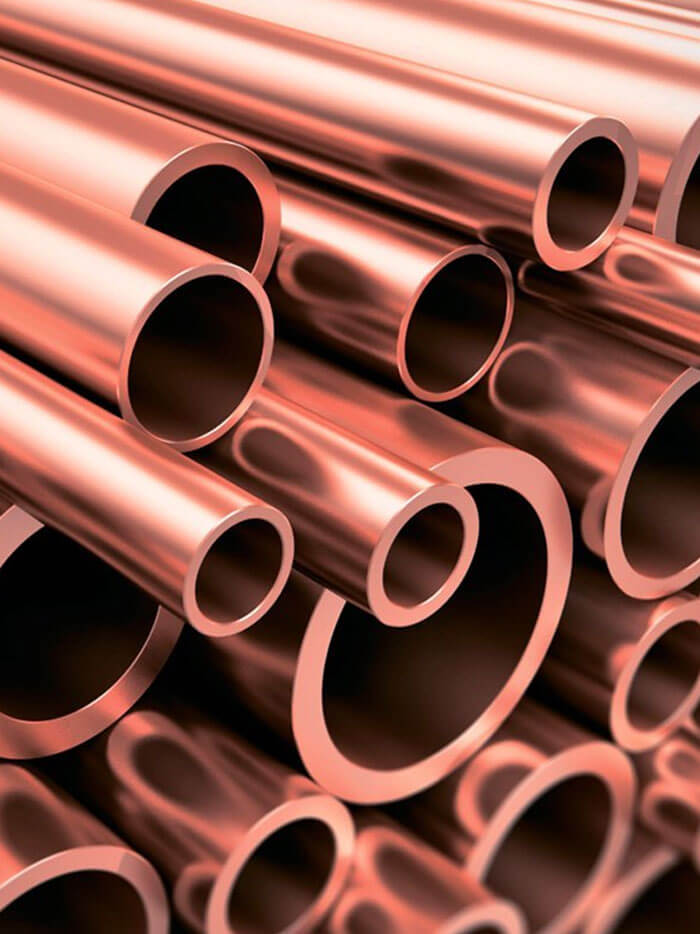

Copper Nickel 70 / 30 Welded Pipes
-

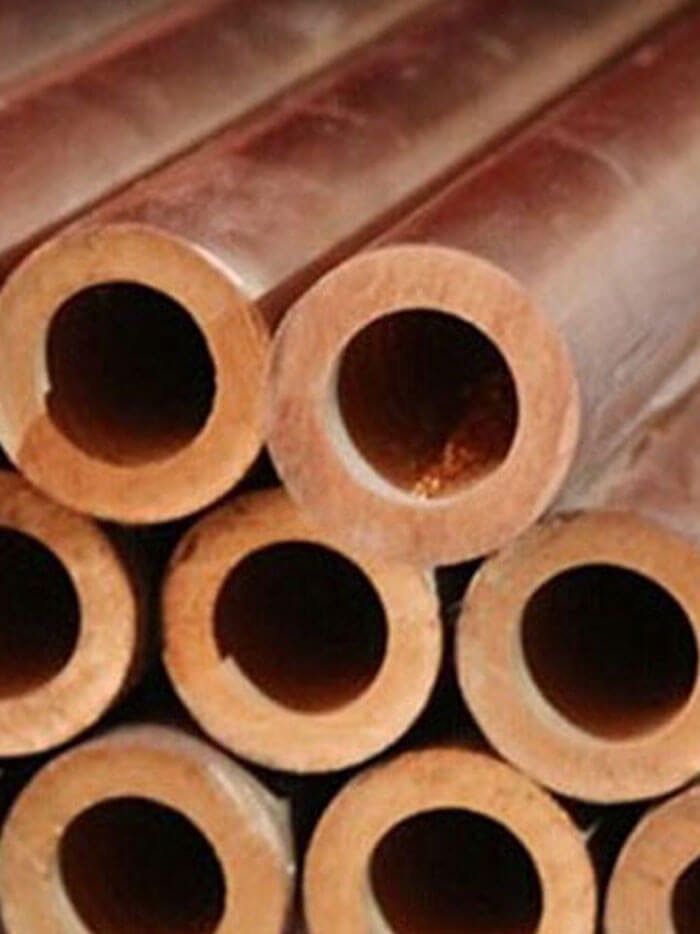

Cupro Nickel 70-30 ERW Pipe
-

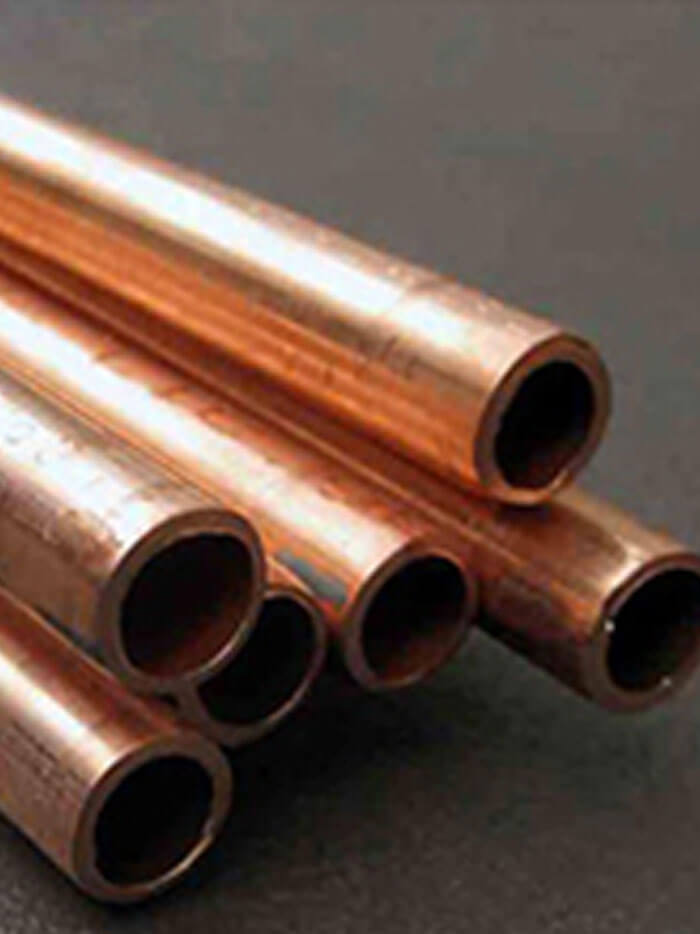

Cu Ni 70 / 30 EFW Pipe
-

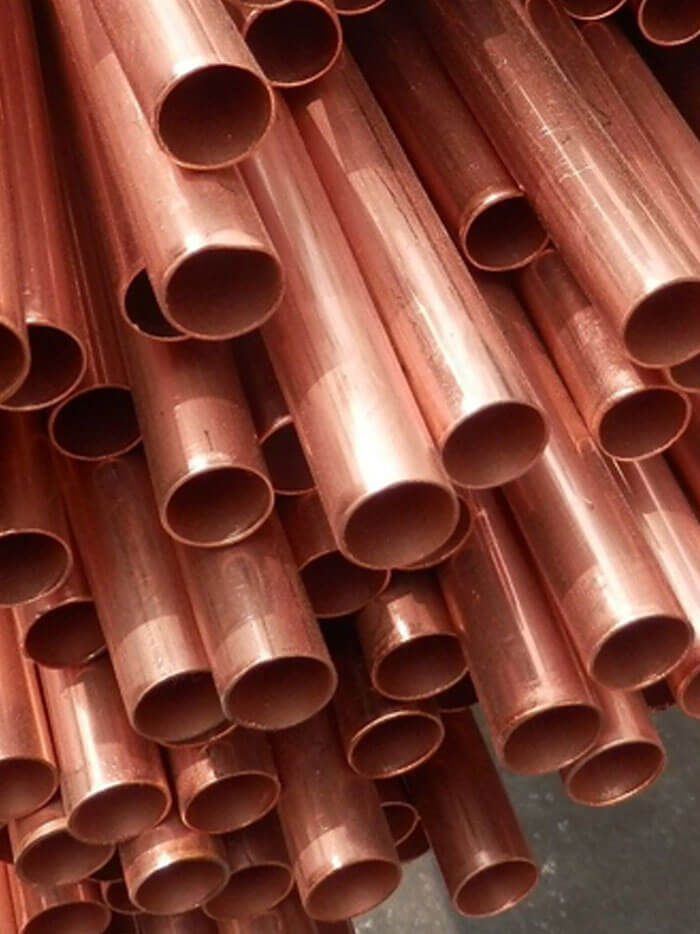

Cu-Ni 70 / 30 Seamless Tubes
-

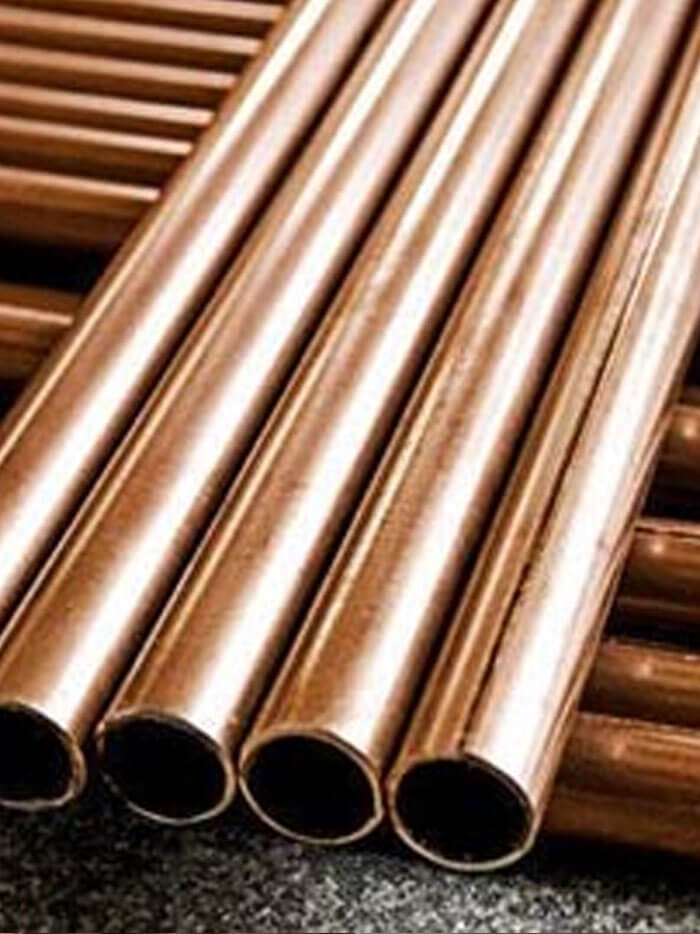

Cupro Nickel 70 / 30 Welded Tubes
- ASME SB466 Cupro Nickel 70 / 30 Pipes
- Copper Nickel 70 / 30 Welded Pipe
- CuNi 70 / 30 Schedule 40 Pipe
- Copper Nickel 70 / 30 Thick Wall Pipe
- Cupro Nickel 70 / 30 Schedule 10 Pipes
- Cu Ni 70 / 30 ERW Pipe
- Cu-Ni 70 / 30 Seamless Pipes
- Cupro Nickel 70-30 4 Inch Pipe
- Cupro Nickel 70-30 Large Diameter Pipe
- Copper Nickel 70 / 30 EFW Pipe
- Cupro Nickel 70 / 30 Pipe Price List
- ASTM B466 Cu Ni 70 / 30 Seamless Pipes
- Copper Nickel 70 / 30 EFW Pipes
- Copper Nickel 70-30 Thin Wall Pipe
- Cupro Nickel 2.0882 Pipes
- Cupro Nickel 70 / 30 Seamless Pipes
- UNS C71500 Pipes
- ASME SB111 Cupro Nickel 70-30 Welded Tubing
- CuNi 70 / 30 Thick Wall Tube
- Cu-Ni 70 / 30 Round Tubes
- Cupro Nickel 70 / 30 Tubes
- Cu-Ni 70 / 30 Tubing Price
- ASTM B111 Copper Nickel 70-30 Welded Tubes
- CuNi 70 / 30 Thin Wall Tube
- Copper Nickel 70 / 30 Round Tube
- UNS C71500 Tubes
- Copper Nickel 70 / 30 Seamless Tubing
- Copper Nickel 2.0882 Tubes
- ASME SB111 Cu Ni 70 / 30 Tubing
- 22mm Cupro Nickel 70 / 30 Tube
- Cupro Nickel 70-30 ERW Tubes
- Cu Ni 70 / 30 Tubing
- ASTM B111 Cupro Nickel 70 / 30 Seamless Tubes
- Copper Nickel 70 / 30 Tubes
| STANDARD | UNS | WNR. |
|---|---|---|
| Copper Nickel 70/30 | C71500 | 2.0882 |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
| Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
| Elongation at break (in 381 mm) | 45.0% | 45.0% |
| Charpy impact | 107 J | 78.9 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 57.0 GPa | 8270 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 150 GPa | 21800 ksi |
“ Check Bhansali Exports's offered Cupro Nickel 70 / 30 Pipes and Tubes Prices, Dimensions & Weight. Place an order or enquire about your requirements. We will glad to be service. ”
