Stainless steel is preferred for many industrial applications because of its excellent properties and versatility. One such alloy is Stainless Steel 904L, a low carbon, high nickel, and molybdenum metal with excellent corrosion and heat resistance, making it an ideal material for various applications. Stainless Steel 904L Sheet/Coil/Plates offer exceptional corrosion resistance and durability, making them ideal for various industrial applications. The alloy's unique composition, which includes nickel, molybdenum, and copper, provides superior corrosion resistance in harsh environments.
Stainless Steel 904L Sheet Features
Stainless Steel 904L Sheet is highly corrosion resistant, even in organic and inorganic acids. It also has excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Additionally, this sheet is highly durable and can withstand high temperatures, making it perfect for use in harsh environments.
Table Content
Stainless Steel 904L Coil Corrosion Resistance
The unique composition of the Stainless Steel 904L Coil gives it superior corrosion resistance properties. These coils are highly resistant to acid attack, especially in harsh industrial settings like the chemical industry. It is also ideal for marine environments where exposure to saltwater can cause corrosion and other damage.
Stainless Steel 904L Plates Chemical Composition
Stainless Steel 904L Plates combine nickel, chromium, molybdenum, and copper, providing them with exceptional corrosion resistance and strength. The alloy's high nickel and molybdenum content make it suitable for corrosive environments, while its low carbon content improves its weldability.
Stainless Steel 904L Sheet Applications
Stainless Steel 904L Sheet has numerous industrial applications, from the oil and gas industry to pulp and paper mills to desalination plants. It is used in heat exchangers, chemical plants, scrubbers, fans, and many other applications requiring superior corrosion resistance, high strength and durability.
Stainless Steel 904L Coil Machining
Stainless Steel 904L Coil requires high machining speeds, low feed rates, and tough cutting tools. The alloy is known for its hard nature, which results in rapid tool wear during machining. However, stainless steel 904L coil can still be shaped into different forms like angles, channels, and flanges.
Rolling
Slitting
Heat Treatment
Ultrasonic Tester Checks
| Standards | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Sheets Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets Plates Thickness | 4mm-100mm |
| Sheets Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc. |
| Value added services | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Form | Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) |
-
904L Stainless Steel Sheets
-

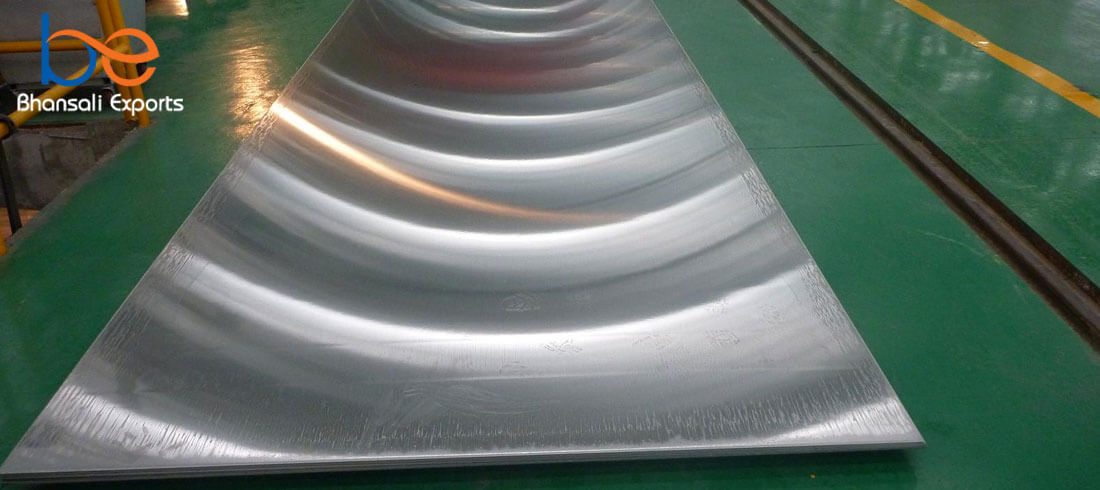

904L Stainless Steel Plate
-
904L Stainless Steel Coils
-
904L Stainless Steel Strips
-
904L Stainless Steel Foils
-
904L Stainless Steel Circle
- Stainless Steel 904L Sheets
- ASTM A240 904L Stainless Steel Plates
- Stainless Steel 904L Hot Rolled Plates
- Stainless Steel 904L Chequered Plate
- 904L Stainless Steel Cold Rolled Sheets
- Stainless Steel 904L 2B Finish Coils
- Stainless Steel 904L Industrial Plates
- UNS N08904 Sheets
- 904L Stainless Steel Matt Finish Plate
- Stainless Steel 904L Matt PVC Sheet
- 904L Stainless Steel Mirror Finish Sheet
- Stainless Steel 904L Plate
- SS 904L Mirror PVC Sheet
- SS 904L Sheet Price Per Kg
- 904L Stainless Steel Coil Stock
- ASME SA240 Stainless Steel 904L Sheets
- 1.4539 Coils
- 904L Stainless Steel HR Plates
- Stainless Steel 904L Strips
- Stainless Steel 904L Shim Sheet
- 904L Stainless Steel Circle
- Stainless Steel 904L Coils Price List
- ASTM A240 TP904L Stainless Steel Sheets
- SS 904L CR Plates
- Stainless Steel 904L Perforated Sheet
- Stainless Steel 904L BA Finish Sheets
- Stainless Steel 904L Rings
- 904L Stainless Steel Finish Polish Sheet
- ASTM A240 Stainless Steel 904L Coils
- 904L Stainless Steel Shim Coils
- Stainless Steel 904L Coils
- SS 904L Plates
- 904L Stainless Steel Plates Price
- Stainless Steel N08904 Coils
- 904L Stainless Steel Sheet Stock
- Stainless Steel 1.4539 Plates
- SS 904L HR Sheet
- 904L 2B Finish Stainless Steel Plates
- 904L Stainless Steel Hot Rolled Coils
- Stainless Steel 904L Rolls
- Stainless Steel 904L Embossed Sheet
- SS 904L Slit Coils
- 904L Stainless Steel Foils
- 904L 2D Finish Stainless Steel Sheets
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.0 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
“ Check Bhansali Exports's offered stainless steel 904L Sheets, Plate, Coils Prices, Dimensions & Weight. Place an order or enquire about your requirements. We will glad to be service. ”
